Overview

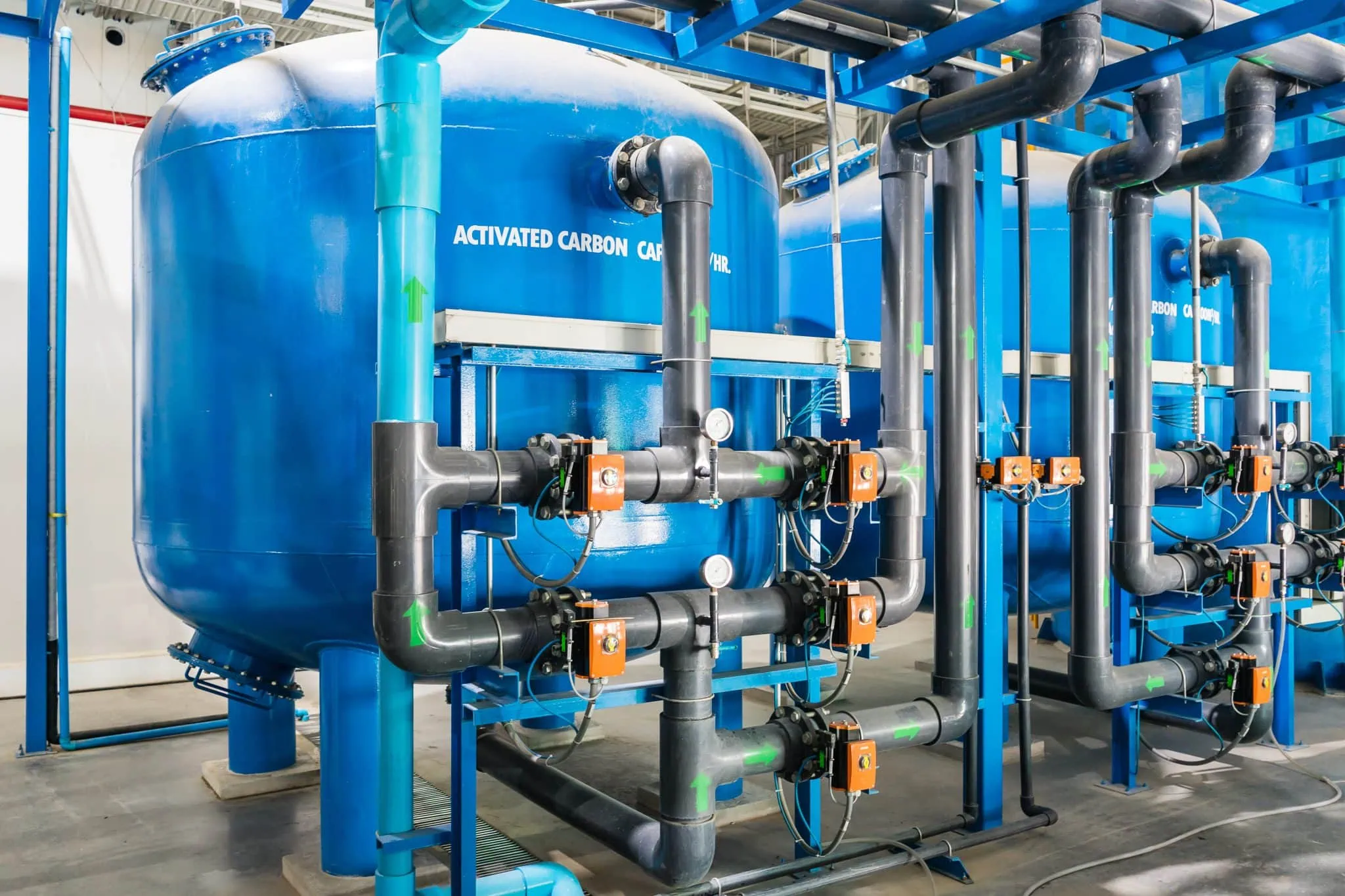

Active Carbon Filters with surface piping are used in systems of 20 m3 /hour and more capacity for the purpose of removing color, taste, odor, residual chlorine and organic substances from water.
Epoxy painted carbon steel, FRP or Stainless steel tank options
coconut based active carbon
Maximum working pressure 6 bar
Time-controlled backwash

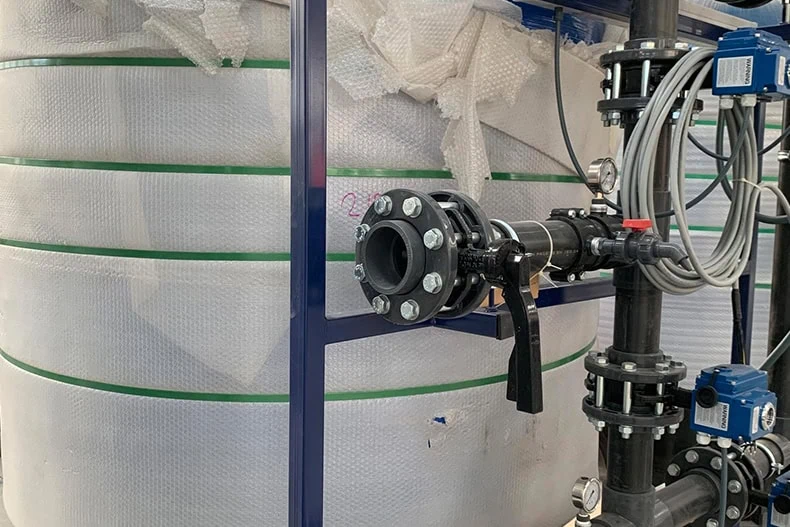

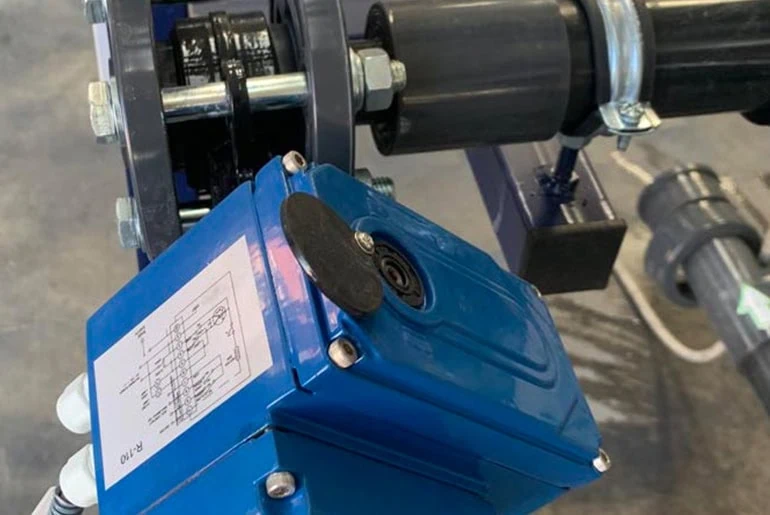

Pneumatic or Optional Electric actuated butterfly valves
Sub-collection structure is lateral diffuser or nozzle diffuser over mirror

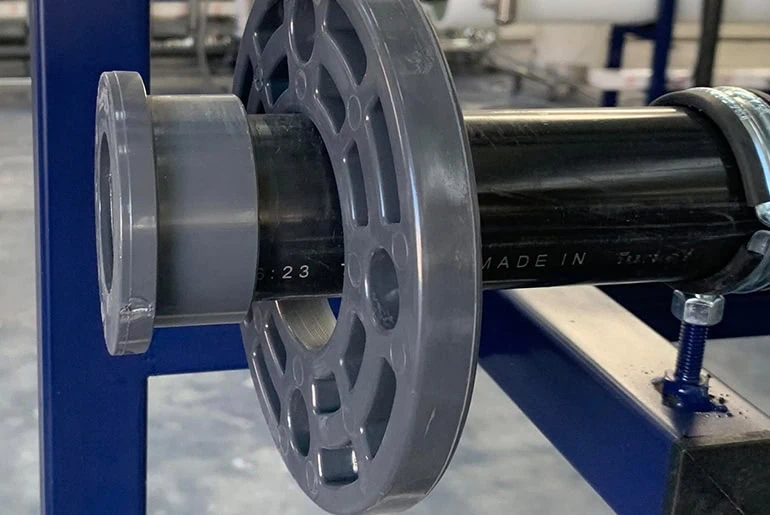

PVC-U material face piping (Optional galvanized surface piping option)
Sample taps and manometers at system inputs and outputs
PLC based Siemens logo control panel (Optional touch screen option)
Electricity 220V / 50 Hz / 1 pH
Metal Tanks can be produced for treatment systems in accordance with Pressure Equipment Standards and certified.
AD 2000 MERKBLATT
ASME SEC.VIII
EN 13445 (TÜV NORD SYSTEMS NOTIFIED BODY NUMBER 0045 approved)
