Overview

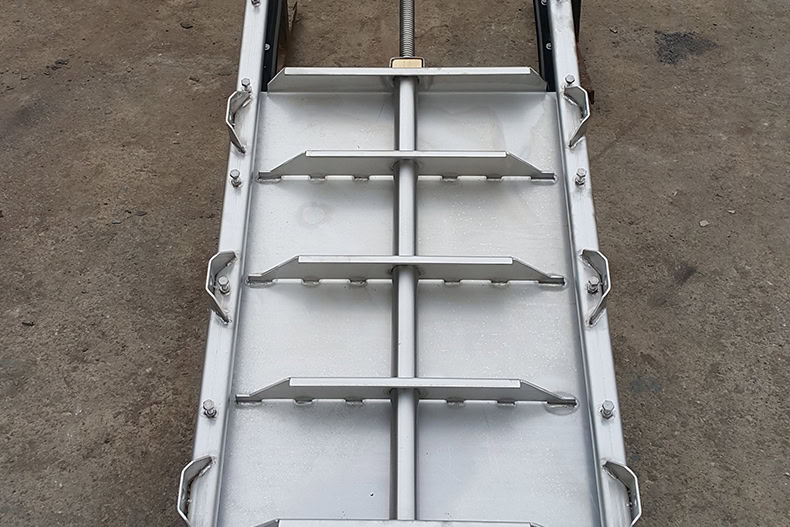

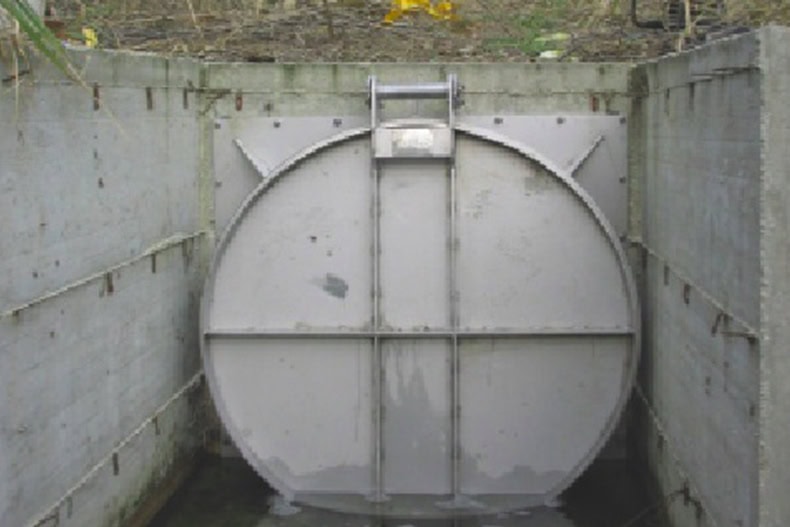

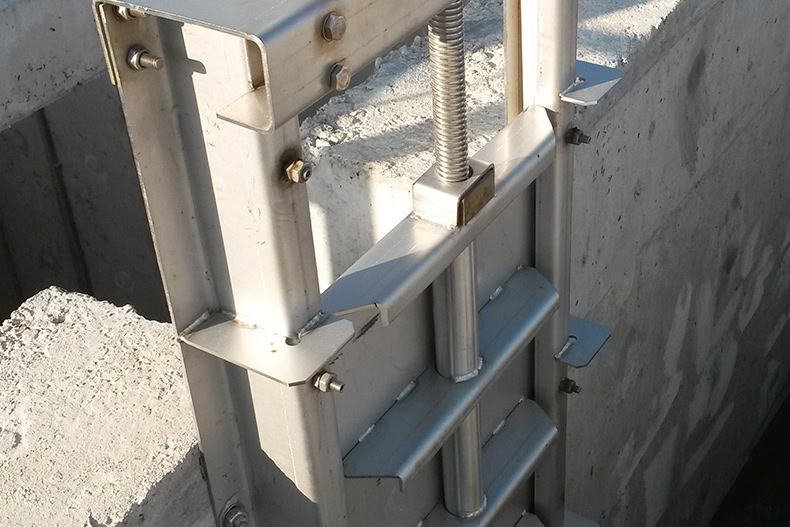

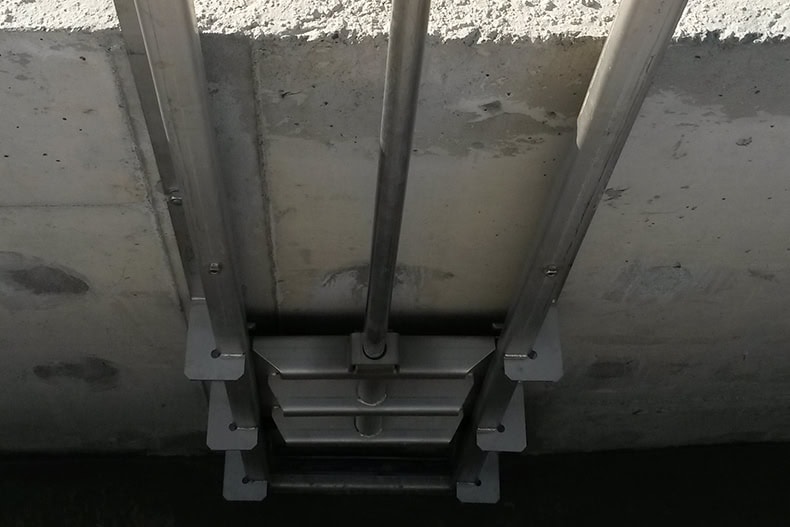

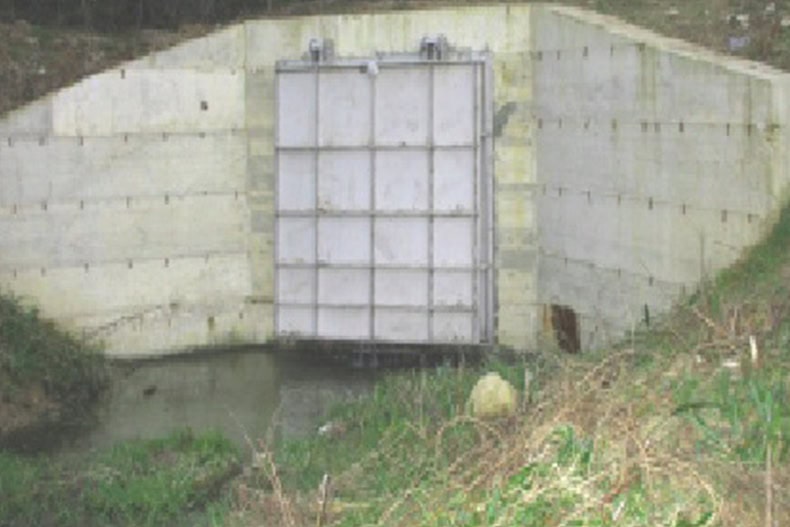

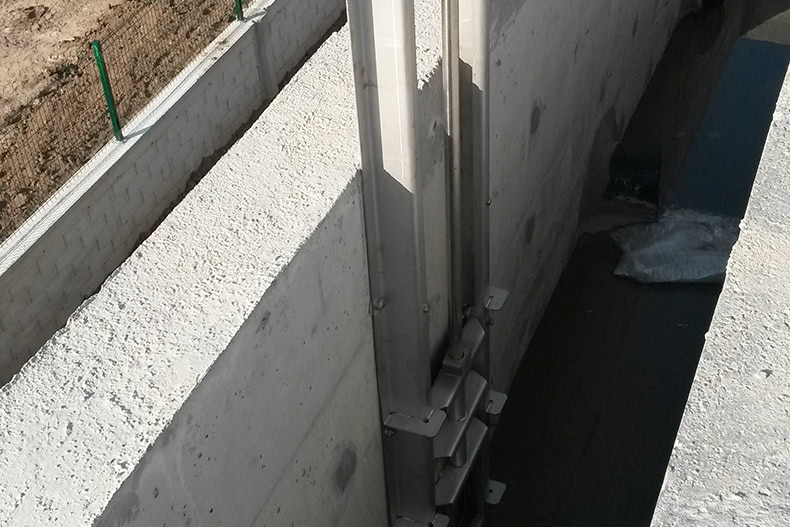

Penstocks are water control gates or structures that control flow. Penstocks also known as Sluice
gates, Slide gates or Stop gates are designed for flow regulation, diversion, level control or isolation and are a flow control and isolation valve for fluids associated with water, waste water, sewage treatment plants, power generation, irrigation schemes and process plants.

MATERIAL

Frame: Stainless AISI 304 or AISI 316Ti

Plate: Stainless AISI 304 or AISI 316Ti

Sealing: EPDM, wastewater-resistant or NBR

Spindle: Stainless AISI 304 or AISI 316Ti

Stem nut: GC-CuSn 12, seawater-resistant bronze

Anchor bolts: Stainless AISI 316Ti

Key Benefits & Features

• Wide range of material applications and sizes
• Multiple operations, including hand wheel or gearbox
• Optional pressure seating (on seat / off seat or both)
• Special sizes factory fabricated
• Wide range of manual operating systems available
• Remote electrical actuator options
• Robust construction with minimum maintenance

Gearbox with hand wheel
Electric actuator with limit switch, torque limit switch, position sensor, manual hand wheel in emergency.
Emergency button
Protection degree IP 65
Electric actuator ON/OFF, with signal or Profibus inverter
