Overview

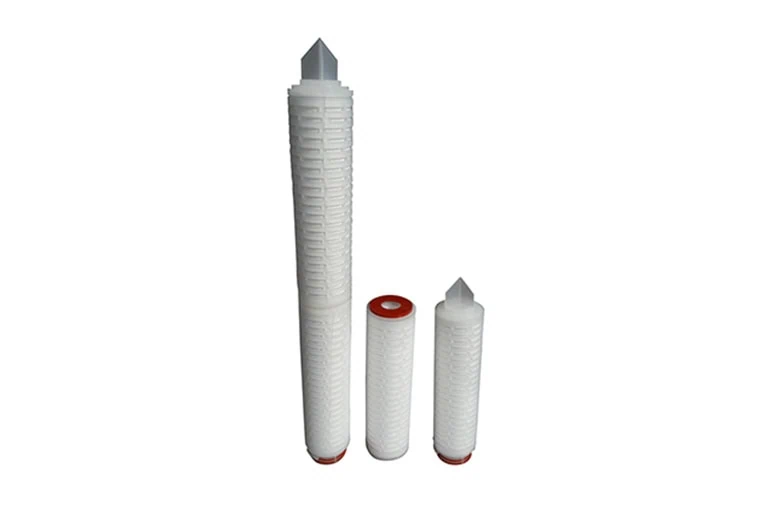

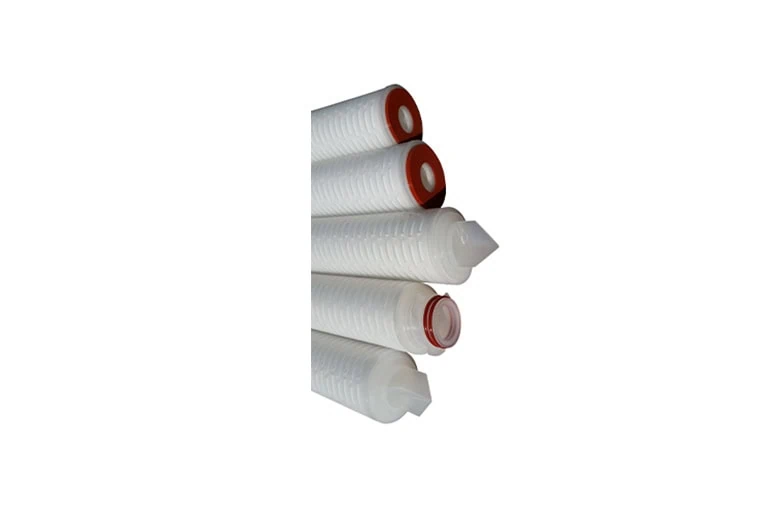

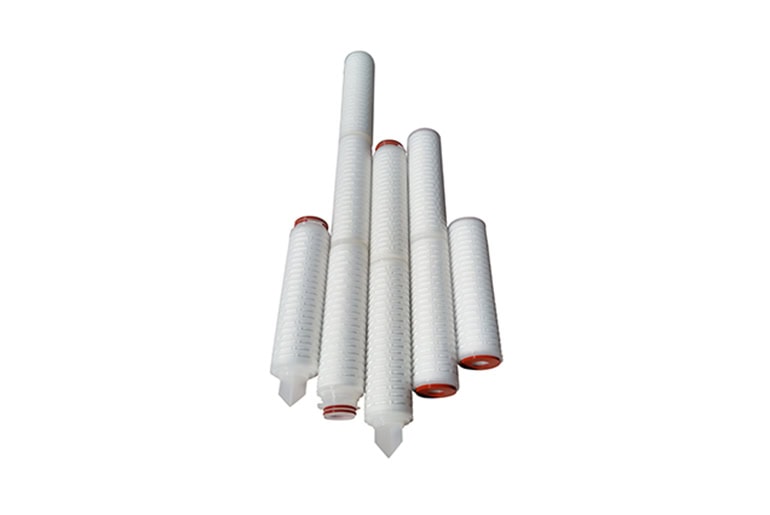

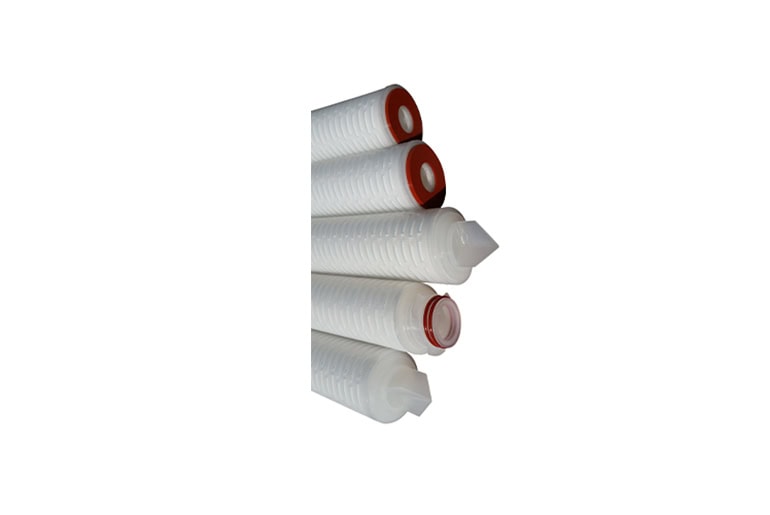

The PP Series of Membrane cartridge filters are known for their delicate and effective filtering of liquids and gases. These filters, made with Polypropylene Membrane, have a great capacity for filtration and are highly durable. Additionally, they come in various micron sizes ranging from 0.11 to 20, and can be found in lengths starting from 5 inches to meet specific needs.

Key Benefits & Features

Filter Media Polypropylene
Support Layer Polypropylene
Micron Values 0.11 µ, 0.22µ, 0.45µ, 0.65 µ, 1µ, 3 µ, 5µ, 10µ, 20µ
Inner Meterial Polypropylene
Outer Material / Cover Polypropylene
O-ring & Gasket Silicone, Nitrile, EPDM, Viton, Teflon
Outer Diameter 69mm
Inner diameter 33mm
Length 10″, 20″, 30″, 40″ …. 80″
Filtration Area 0.65 m² per 10″
Normal Operating Temperature Up to 60°C(140°F)
Maximum Operating Temperature 80°C(176°F) at ^ ≤ 1.0 bar (14.5 psi)
Normal Flow Direction 25°C(77°F)’de 4.2 Bar (60.9 psi) at
Counterflow Direction 25°C(77°F)’de 2.1 Bar (30.5psi)
PH Value Compatibility 1-13

PLEATED POLYPROPYLENE CARTRIDGE 80°C
PHARMA GRADE PES – Hydrophilic Polyethersulfone 80°C
GENERAL GRADE PES – Nylon Membrane For Liquid App. 80°C
PHARMA GRADE PTFE – Membrane Teflon 80°C
PLEATED MICROFIBERGLASS CARTRIDGE 80°C
HIGH PERFORMANCE – Water Grade Polypropylene Meltblown Cartridge 80°C
